Jetting Mikuni VM/TM carburetors

Click here for my page verifying the Jetting Calculator for Mikuni VM/TM carbs.

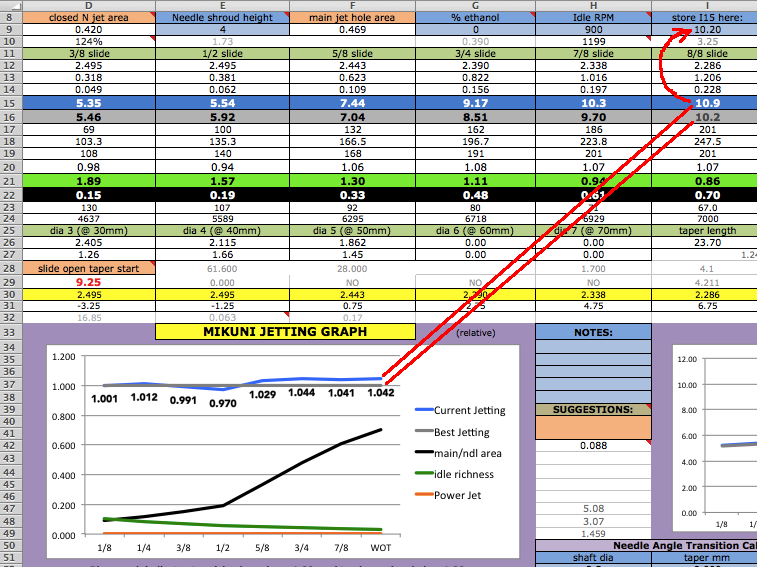

Below is a screenshot of my spreadsheets page for Mikuni VM and TM carbs. Here's how to use it: Enter all the data in the light blue data boxes and the program will graph the jetting. If you hover the mouse pointer over a cell with a red corner then a message will pop up telling you about that cell. 3/4 down this page are the links to the needle and needle jet info that you will need to know, such as the needle jet ID of your carb. Starting at row 53 on the spreadsheet are all the VM and TM needles and their data.

Here's the sequence to follow:
0) First make sure your real life idle jet size is correct. Turn in the slide stop screw till you have a slightly fast idle. Then slowly turn the air screw till you find where it idles the fastest, then readjust the slide stop for the same fast idle as before if it has changed. Then slowly turn clockwise the air screw till the idle speed starts to drop off due to starting to be too rich (but which is good for starting w/o the choke in warm weather). This should result to be within 1 to 2 turns out. If it is less than 1 turn then you need a bigger idle jet. If it is more than 2 turns then you need a smaller idle jet. Install correct idle jet if necessary and repeat procedure. Then turn the slide stop screw till you have a normal idle speed. The idle jet that gives the best starting and idling is the right one for use with this program and you can change it back later. Normally if you have to make the idle mixture too rich for idling in order to help compensate for weak throttle response as you crack the throttle open then you either have the needle clip in too high a position or you need a skinnier needle or fatter needle jet (the brass hole the needle slides into).

1) Make sure your main jet is correct. Click here to read about getting the main jet right. For small carbs you may need to lower the needle shroud if one main jet size is too rich and the next smaller size is too lean. In that case put in the rich jet and then lower the shroud .5mm (.02") at a time till the jetting is right.

2) Determining mid throttle needle-dependent jetting - Mark your throttle body and throttle grip so you can see where 1/2 throttle open is. Ride at a steady speed on a flat road, or on an inclined road if the bike wants to accelerate much at those settings. Then listen to the exhaust note. If it is irregular and/or sputters occassionally then the needle is too rich at that setting. If it runs fine but drops power when you quickly open the throttle then it is too lean there. Something between those two extremes is desirable. You need this info to be able to entr a jetting richness/leanness # at A8. To lean out the mid throttle jetting a bit you can lower the needle by repositioning the clip higher, or do the opposite to richen the mid throttle jetting. But be aware that the needle position also affects the transition of power off idle. If you have to lower it so much that it causes too much of a weak zone off idle then you should just buy a needle with less taper angle.

Reading the graph:

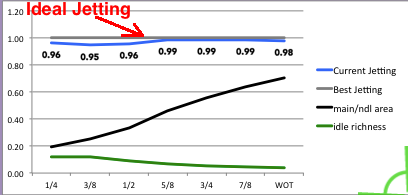

The numbers indicate rich if over 1.0 and lean if under 1.0. Racers need mid range richness but not over 1.06, and street/trail bikes need less than 1.03 max. Ignore the 1/4 slide jetting since that often is too rich or lean, and it is just off closed throttle which you blast through.

3) Go to the last sheet (click on the velocity tab at the bottom left of the screen) to find out the maximum air velocity to enter at B7 at the sheet you are using (depending on carb). If you aren't sure of the transfers duration then enter 125-130 for race engines or 115-120 for street/trail engines.

You'll need to set the slide stop screw for an even engine idle and then take the carb off and measure the idle slide height for C41 of the jetting sheet. The calculated value of 11% of the carb bore is at C14 of the Air Velocity sheet which is acceptable with reed valves. If you absolutely don't want to take the carb off to measure the slide opening then use this value.

4) Enter either the 4/042 main jet # (@ F3) or the N100.64 main jet # (@ F5), depending on which your carb has. VM carbs come with 4/042 main jets but some TM's have the N100/604 jet. These series of TM carbs come with N100/604 main jets: TM33-8012, TM36-68, TM40-6. Put 0 in the cell not used because the graph will crash if both jet #'s are there.

5) At D5 you enter the needle ID (code) so the program can find the needle in the listing farther down the same sheet and use its data for the calculations. The needle ID is imprinted near the top of each needle. Data for custom needles or ones not listed on this sheet can be entered at rows 178 to 184. Give any custom needle a unique ID.

6) Enter at C28 the millimeters the slide is open when the start of the needle taper is at the top of the narrow section of its jet. You can use the manual method described on the previous page or use the value from D29 (5.8 in this example) after you enter the needle ID at D5 as well as the data for A35, B35, and A37.

7) Adjusting the end of the "ideal jetting" grey graph. Look at the graph results to see where the blue graph is above or below the grey line at full slide opening (far right). If you know the main jet size is clean running with good power then enter the value from I15 into I9. I9 sets the height of the end of the grey line (which represents perfect jetting which your calculated jetting is compared to). In this example 10.9 needs to be entered at I9.

8) Now set the beginning of the "ideal jetting" gray graph. If your idle air screw is correctly adjusted and you have measured the idle slide height and entered it at C41, then enter the value of A1 at A7 (5.12 in this example). This will set the beginning of the grey graph in case you virtually make any changes that affect idle jetting (idle jet, air screw, shroud height, cutaway) so the graph will show how far off it is from ideal. The beginning and end of the gray graph are the most important to set.

9) Now you can set the 5/8 slide position ideal graph value according to your own evaluation of mid throttle jetting. This completes the skeleton of the ideal graph which the program will fill in the remaining points for a complete graph for your jetting to be compared to. Hover your mouse pointer over A8 to read the lengthy comment stored there. It basically says that you need to enter 1.0 if the jetting there is perfect, or a higher # if jetting there is too rich, or less if the jetting there is too lean. Then enter the # at E28 at A9 which will set the gray graph mid point that all future changes will be compared to. After setting the three main points on the grey graph you need to leave them alone. All virtual changes will be to try to get the blue graph to be equal to the gray graph. To be the most precise in this step it iis best to remove the carb and open the throttle till the slide is 5/8 (62%) open and then mark the throttle and throttle body. (You can use White-Out)

Virtually Finding The Best Jetting
10) If you want to lower the blue jetting graph from 1/4 to 5/8 slide open then you'll need to 1) raise the needle clip # at B35 for a lower # at D29 to enter at C28, or 2) reduce the clearance between needle and needle jet by selecting a needle with fatter diameter or a needle jet with smaller diameter. If the graph there is too lean then you need the opposite. That change also affects idle and main jetting and so the number at A1 will change. When that happens then change the air screw turns or idle jet # till A1 returns to what you recorded before at A7. You can also lower the needle shroud height (and increase the main jet) to lessen the graph from 1/4 to 7/8.
Also less slide cutaway makes the jetting there richer. Additionally you can lower the slide opening at C28 (by lowering the needle clip) to raise the beginning section of the blue graph to be closer to the ideal grey graph. If that exceeds the physical limitations of the slide and needle clip then you can put home-made washers under the needle clip to reduce the slide opening at taper start. Then measure the new distance and enter that value at C28.

11) Selecting a different single needle taper. Notice the blue graph at 1/2 slide opening and if it is above the grey graph by very much then you need a different needle with a smaller taper angle or you can lower the needle shroud. If the blue graph is below the grey one then the needle needs a bigger taper angle. Here you can see that the bigger angled needle gave a richer mid throttle jetting.

12) Re-record this spreadsheet with all of your data in it. For example, if saving data for a YZ250 then save it as JettingCalcYZ250.xlsx You can email this to me with any questions you may have at 19jaguar75@gmail.com

Mikuni Carburetor Jetting Calculator

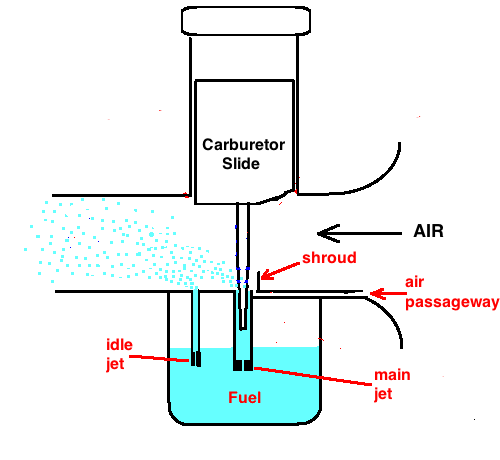

These graphics will show you what I mean by "needle jet shroud" which on the spreadsheet you have to enter its height at E9. It causes less vaccuum at the needle jet which pulls less fuel up. This can bring the vacuum at the needle jet into the "sweet zone" if the carb is undersized and has a high air velocity. It also helps with jetting a small VM because the available jets don't have sizes close enough together for the small sizes. Usually the VM18/22/24 have a needle shroud. All the TMS/TMX's have one so that question isn't asked on the TMX sheet. It is basically a little more than a half circle extending up from the needle jet on the air filter side.

Listings of all the Mikuni VM needles: Sudco NicheCycle.
Click here to downlad an Excel sheet which gives dimensions on absolutely all the Mikuni needles ever made.
(The Mikuni needle data on my spreadsheet is even better than what they list because it has corrections for obvious errors they made in copying.)

Here's what Mikuni VM's typically are equipped with.

VM needles:
Series 4 for VM18-24 carbs

Series 6 for VM30-38 spigot, TM38 carbs

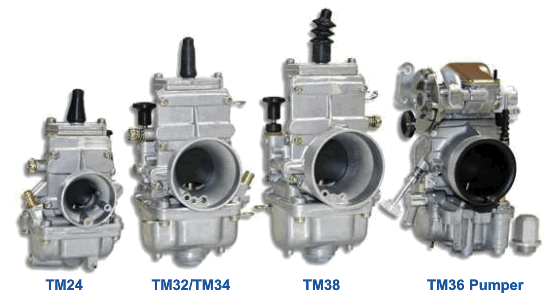

Mikuni TM carbs :

TM NEEDLES
TM24, TM28, TM32, TM34: 5D120 5FL14 5DP7 5F3 5L1 5F12 (lean --> rich) $7.04
TM24, TM28, TM32, TM34: 5DL31 5DP10 5DP39 5E75 5EP6 5F21 5FP17 5FP96 5J11 5N13 $7.04
TM33-8012 PUMPER CARB: J8-5FP96-3 $7.04
TM38 FLATSLIDE: 6DH2 6F9 6DH3 6l1 6DP1 6DH4 6DH7 6DH8 6FL14 6F15 (lean --> rich) $7.04
TM38 FLATSLIDE: 6DJ30 6DP4 6DP17 6F4 6F5 6F8 6F16 6F21 6FJ6 6FJ40 6FJ41 6FL25 6J1 6FM46 6N1 $7.04
TM36 TM38, 39 + 41 PRO SERIES: 6FJ41, 6FM46, 6FJ40, 6DP4 $7.04

Here's what Mikuni TM's typically are equipped with.

The normal #5 series of standard Mikuni needles are suitable for the TM34, and the #6 series is good for the TM36 to TM38 non-pumper carbs.
Listings of all the standard Mikuni needles: Jets R Us (but theirs aren't all genuine Mikuni needles). NicheCycle and Sudco also have needles.
SUDCO: VM carb parts, Mikuni needles, Mikuni jets, VM slides, TM carb parts.
(The #5 and #6 data on my spreadsheet is even better because it has corrections for obvious errors in copying.)

Each MIKUNI NEEDLE is identified by the letters and numbers stamped on them. Example: 6FH7
6 is the length, which in this case is more than 60mm but less than 70mm
F is the top taper, A-E having less taper
H is the bottom taper (sometimes the NEEDLE has only one letter, in that case it refers to a single taper)
7 is a mfg code not normally used in tuning.

NEEDLE JETS
Here's the chart showing the inner diameters of the jet holes:

This shows what needle jet series is used in each model carb and which ones are available from SUDCO. Ones for carbs under 24mm aren't available.
